BioSpot-GEM Series 302 Bioaerosol Sampler Purpose Handix Scientific Circles white The BioSpot-GEM™ bioaerosol sampler uses water condensation capture for highly efficient collection of bioaerosols in an easy-to-use and portable package. Applications: Environmental and IAQ professionals can sample the air for pathogens with the confidence of an aerosol research expert.
High quality particle sampling onto a swab or liquid
Collects 10nm to 10um particle sizes with equal effectiveness
Concentrated, contamination-free collection
Small, lightweight, and quiet operation
Analysis compatible with virus/microbial testing methods, such as PCR and sequencing
Aerosol Devices BioSpot-GEM instrument
Blue Circle Features Handix Scientific Circles white Environmental and IAQ professionals can sample the air for pathogens with the confidence of an aerosol research expert

High quality particle sampling onto a swab or liquid

Collects 10nm to 10um particle sizes with equal effectiveness

Concentrated, contamination-free collection

Small, lightweight, and quiet operation

Analysis compatible with virus/microbial testing methods,
such as PCR and sequencing
Blue Circle Blue Circle Blue Circle Blue Circle Blue Circle
Aerosol Devices BioSpot-GEM sample kit Aerosol Devices BioSpot-GEM liquid sampling module Collection Methods Handix Scientific Circles white Aerosol Devices Spot Sampler Liquid Sampling Module ‘Spot’ Particle Collection

Specifications Handix Scientific Circles white Aerosol Devices Spot Sampler Liquid Sampling Module Swab Sampling Method
Optional Liquid Sampling Kit

- Deposits directly onto swabs for concentrated, easy to transfer sample
- Sample directly onto stabilizer (patent pending) for instant DNA/RNA preservation
- Ability to adjust sampling time on each swab from 1 minute to 24 hours

The BioSpot-GEM sampler includes a starter sample kit for immediate use (8 samples).
An impaction well can be added into the sampling column to allow collection to be compatible with methods such as spectroscopy and chromatography.

The BioSpot-GEM sampler includes one impaction well with the base unit.
- Liquid sampling is preferred method for viable capture of bioaerosol
- Particle collection into almost any liquid with collection volume from 300uL to 700uL
- Polycarbonate vials are available in ported and non-ported configurations

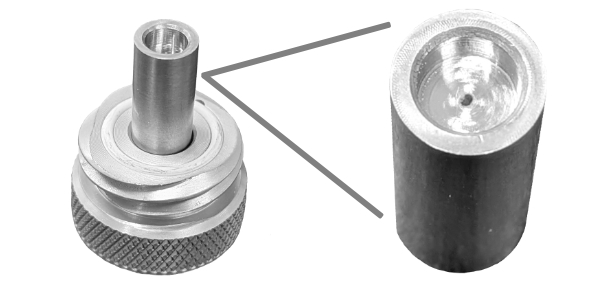

Aerosol Devices BioSpot-GEM-Spot Insertion well

Collection Substrate

Sterilized commercial swab;

Single solid ‘well’ for concentrated spot samples;

Can include liquid sampling kit to sample into 500uL liquid vial

Particle Size Range & Collection Efficiency

>95% for swab collection of particles 5nm to >10μm

>95% for solid collection of particles 5nm to >10μm

>90% for liquid collection of particles 5nm to 10μm

Particle Concentration Range

Zero to 10^5 particles/cm3

Condensing Fluid

Water, distilled or cleaner

Sample Flow Rate

1.2 L/min

Sampled Aerosol Conditions

Non-corrosive

0 – 40 degrees C

Sample Components

Sterile swab can be pretreated with genomic preservative for ease of sample handling

Sample Time

Two preset user-adjustable sample times from 1 minute to 24 hours per sample

Controls

3-position dial for setup and sample start duration

Status Indicator Lights

4-color LED indicating warm-up/ready (yellow), sampling/setup (green), standby/off (blue),
error (red).

Communications

USB serial communications for setting sample time options; output for sampling parameters
and instrument status

Environmental Operating Conditions

10 – 35 degrees C
10 – 95% RH, non-condensing

Sample Line Cleaning

Ozone, alcohol rinse, hydrogen peroxide

Instrument Decontamination

Recommended vaporized hydrogen peroxide, other methods possible per experimental needs

Sample Inlet

10mm OD SS tube

Noise

Quiet for unobtrusive sampling, home use; 48dB; about as loud as a home refrigerator

Power

90-264 VAC/47-63 Hz; output voltage is 12.0 V DC and output current is 15A (maximum)

Dimensions

241 mm (H) x 243 mm (W) x 203 mm (D) (9.5 x 8.4 x 8.0 inches)

Weight

4.5 Kg (10 lb)

Aerosol particle collector technology is licensed from Aerosol Dynamics Inc. with U.S. Patents #6712881, #7736421, #8801838, German Patent #10392241 and Japanese Patent #5908475. Other patents pending. A grant from the National Institutes of Health (1 RC3 ES019081-01) funded the collector development.

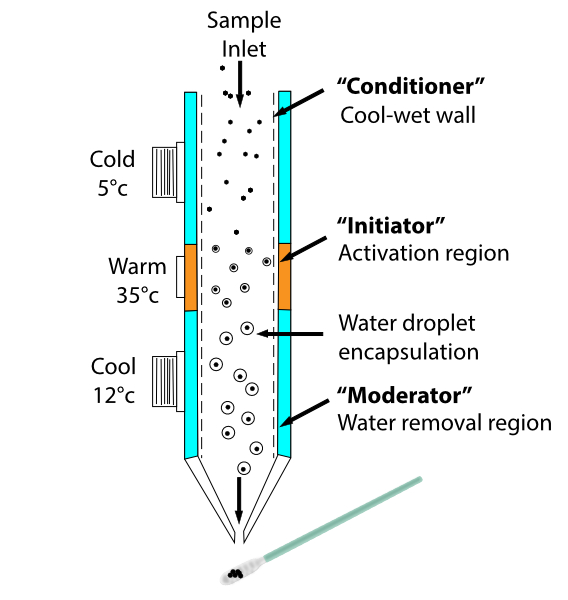

Slide Aerosol Devices BioSpot GEM Growth Tube diagram Impaction of droplets/particles onto swab How does it work? Handix Scientific Circles white The BioSpot-GEM uses a patented water condensation growth tube (CGT) to encapsulate airborne particles into liquid water droplets and gently deposit the droplets onto the surface of your choice. This technique substantially improves the efficiency and quality of collection of bioaerosols (<10nm to 10um), sampling directly onto a sterile stabilized swab or directly into liquid.

Whereas other techniques suffer from desiccation, mechanical stress, thermal stress, and re-aerosolization, the BioSpot-GEM sampler is efficient in collecting particles in public settings without distraction. Additionally, the water condensation growth tube technique has been published in many studies specifically searching for viable capture of bioaerosols.
Aerosol Devices BioSPot-GEM process images After swab sample completion, downstream transfer is simple: Watch this
one minute video
to see how easy it is to use the BioSpot-GEM
